Mining, Fracking & Underground Mine Fires



Click for More Info

Mining Operations

 This presentation focuses on spotlighting the procedure to determine the way to   implement this novel and effective technology, its appropriate product and   methodology for determining the way forward and procedure designed to deliver a   quick, safe and economical life and property safety solution to mining operations.

INTRODUCTION

FireStopper® International Limited (FireStopper®), a transnational Registered Company, is the developer of the world’s most advanced and powerful firefighting and anti-explosion “Proprietary Technology”, within the meaning of the Uniform Trade Secret Act (“UTSA”) Cal. Civ. Code Sec. 3426, Common law, Business and Profession §17200 and all other applicable U.S. and International statues, which also produce environmental remediation and other supporting applications.

FireStopper® initially devoted the first 25-years of its existence to R&D and subsequently is the recipient of the stand-alone Global testing and certification results.  Such achievement was afforded by way of unprecedented results in fire ratings, usage and environmental certifications.  Said superior performances over all others is supported by the certifications received from the most recognized and respected third party testing and listing facilities in the world.

Moreover, this unique Technology has rendered the only available “all fire class” effective and “anti-explosive” products, which are Non-Toxic, Non-Irritant, Environmentally Safe and Non-Hazardous.  These achievements were garnered by way of the most demanding environmental and life exposure testing and certification making the FireStopper® “Brand” the best overall over the other existing and available products in the explosion/fire and safety channel of business.

PRESENTATION:

The Specter Of Devastation From Explosion And Fire Has Plagued The Mining Industry Since Inception.

Notwithstanding the natural causes for these devastating events, a new set of risks is evident today.  With today’s advanced technology driven electric-powered equipment, which now employ the desired and evolved ion-Lithium batteries, the safe operation of mining no longer can rely on the failed old fire and explosion equipment and media.

The FireStopper® Brand and Technology is the deliverer of the only reliable, all fire-class effective, anti-explosion media available in the World.  Our Concentrates and exclusive to FireStopper® Trademarked Systems Premix is the only true solution to the problem.  Whether the genesis of the explosive event is born of a natural source ignited by a spark or caused by faulty equipment, FireStopper® will quickly and efficiently terminate the fire, saving the potential loss of life, equipment and productivity.

Moreover, by deploying FireStopper®, contingent liabilities shall dramatically be reduced, allowing for the ability of the business to undertake expansion in output and profit.  The FireStopper® Brand of hardware products are manufactured in stainless steel for durability and ease of maintenance.  For example, the FireStopper® line of handheld portable extinguisher is the only potables line in the Industry offering a 20-year warrantee alongside the unique and reliable effectiveness.  All efficacies represented by FireStopper® rely exclusively on 3ʳᵈ party certifications, confirming all fire-class (ABCDK) and subclasses of flammable materials, including Nuclear Industry related flammables.

In addition, all FireStopper® Media, concentrate or premix, offer and deliver massive cooling efficacy, smoke abatement, vast reduction of water use, reliability of environmental safety, plus non-toxic, non-irritant and non-aggressive additional reliabilities.

We encourage all who contemplate employing our products to conduct their own head-to-head comparison with whichever other materials are in use or considered for use.

DISCUSSION:

 Industry Safety & Economic Concerns:

Explosion

  • The most prevalent threat comes from the mass accumulation of dust particles in the active prospecting environment, which is the byproduct of the mining operation in the extraction process, that can and will be ignited by a spark to cause a catastrophic explosion. The spark may initiate from an electrical source or even more endemic, a natural occurrence when the dust particle count reaches a point where static electricity may happen automatically.
  • The Solution
  • In every environment where digging and drilling is taking place, a misting/fogging system should be employed delivering the appropriate FireStopper® product to coat the dust particles; in most cases this process will cause the micro particles to fall to the ground while still coated for protection against any reemergence of the hazard. The coating of the particles with immediately prevent the potential for explosion from this source.  Other sources of explosions may materialize as spontaneous reaction events, which may be born from decaying stored explosive devices.  If a detection and activation system is deployed in these areas, the appropriate FireStopper® premix will be effective in reducing the explosion’s intensity to such an extent that the damage may be negligible at best.  We recommend you view the FireStopper® explosion mitigation video and study the “Explosion Protection” white paper also available at our website @ firestopperus.com

Fire

The Mining environment, by definition, can self-produce extremely volatile byproducts that can lead to serious fire events. The following are just a few examples; nonetheless the solution is still the same:

  • Volatile gasses such as Methane, Hydrogen and Hydrogen sulfide or other volatile combinations thereof, however, the most volatile environment is referred to as damps. These damps are produced or released during mining operations including drilling and blasting, by mining machinery such as diesel and gasoline motors, and by other means such as the decay of timbers, the aftereffects of mine fires, and chemical processes like oxidation.  Ventilation alone is not enough to eliminate the potential for deadly explosions.
  • Malfunction of equipment or materials employed in the process of mining leading to fire.
  • Lithium-ion batteries pose a present and future danger in this scenario. Most vehicles operating in the mining concerns come with the potential for an unstoppable fire event whose temperature can exceed 2000 °F leading again to a catastrophic event.  Today, outside of FireStopper®, there exist no protection against a Lithium-ion battery fire no matter what or who represents efficacy; one must investigate the available evidence of massive failure to extinguish electric vehicles with the existing available class D certified products.
  • Criminal and intentional setting of fires, which in the abundance of caution must also be address.

The Solution

  • FireStopper® Portables and Fixed Systems should be deployed in a systematic way for maximum safety and to provide the quickest delivery of the appropriate product to the fire, regardless of the class of fire or flammables present within the fire parameter, to produce the fastest and most complete eradication of the fire potential and event.

The FireStopper® full line of handheld portable extinguishers provide the widest variety of sizes and efficacy, never before available, to quickly extinguish an event that normally would expand into a catastrophe.

FireStopper® offers a full line of the most applicable and feasible CAC (Compressed Air Catalyst Systems) units designed to provide the maximum delivery system necessary to eliminate the threat of fire and explosion.  Both of these category of products will deploy our exclusive FireStopper® Predator FFC, only available through our trademarked hardware products (for additional information on all categories of products, please consult our website).

For large volume output, FireStopper® Concentrates:

  • FireStopper® Terminator 136 FFC, usable @ 1%, 3% or 6% for great insurance against mechanical failure of delivery devises not producing the correct required mixture
  • FireStopper® Disruptor 3610 FFC, this product is the product of choice to pre-spray flammable surfaces or materials to prevent their ignition among other highly effective applications necessary in the course of business to defeat the fire or explosion threat.
  • FireStopper® Fixed Systems, under this category all products are designed to fit the purpose; please consult FireStopper® for further details…

The history of this Industry has produced devastating fire events some of which are still burning for over 75-years; these are generally coal mine fires.  Other mining operations are certainly not immune to long lasting fire events that not only devastate the mining enterprise but also the environment, the adjacent human habitats and most unprotected, the animal related habitation.

Another serious source of fires to the mining operation derives from commonly employed materials making up the conveyer belt machine deployed across the Industry.  There is a variety of this equipment at work in mine operations and because they are specifically design for purpose, identifying where a particular source of flammable materials used in their composition may cause the emergent event.  Most of the components have high risk of fires due to heat from friction that before the advent of FireStopper® the operation would require a variety of different fire suppressants.  Instead, FireStopper® provides the opportunity to the Industry to simplify their fire protection mechanism by employing just one product to provide global protection against every possible source of fire or explosion.  As a direct result of implementing and utilizing FireStopper® the enterprise will eliminate confusion over which products to use while determining the source of the fire; one product does it all…

CONCLUSION

Something else to consider as an additional advantage gained by deploying FireStopper®, the massive runoff produced from these serious explosive fires will be minimized due to the great overall efficacy this Technology delivers.

These unintentional and unexpected potentially massive contingent liabilities, caused by the present fire mitigation process will be greatly reduced with the use of FireStopper®.  Also, as a consequence of said event’s liabilities created and demanded by Government for post fire cleanup of the environment, this liability will be massively reduced if not eliminated in total when FireStopper® is used.

Because of FireStopper®’s unique and indisputable status as the only Technology and Products of its kind anywhere, it will deliver to the end-user never before afforded safety, security against these events where ever fire and explosions threatens their operations and by extension deliver economic gains to their bottom line no available before.



Click for more info

Fracking Operations

This paper describes several applications of FireStopper products to fracking operations that will significantly impact costs and safety operations. Fire threats to pump trucks will be eliminated along with no contamination of local water reservoir, reducing drill operating temperature thus significantly extending operating life of the drill.

Fracking

Since Hydraulic Fracturing operations can virtually take place globally, until now, the support industry for these operations could not offer an economic solution, both in time, effort, and cost, to deliver total safety.

Preface

FireStopper International Limited, a transnational Registered Company, is the developer of the most advanced and powerful firefighting technology in the “World”. It devoted the first 25-years of its existence to R&D and the recipient of subsequent stand alone testing results in ratings and certifications by the most recognized and respected third-party testing and listing facilities in the world.

Moreover, this unique Technology has rendered the only available all fire class effective and anti- explosive products, which are non-toxic, non-irritant, environmentally safe and non-hazardous over all other existing and available products in the fire and safety channel of business.

Having proven the former statement through the outstanding results of the products testing, rating, and certifications thus received, FireStopper®, in tandem with its novel firefighting and anti- explosion products (the “software”), developed the most durable and reliable supporting hardware and detection systems available today, which also meet and exceed the relative standards used to certify said product lines.

Moreover, the FireStopper® lines of products reach across the full spectrum of safety application including environmental remediation post spills both onshore and offshore.

In the International arena, the FireStopper® brand is the recipient of the highest certifications in all category of Governmental requirements to market such as defined below:

Handheld Portable Extinguishers:

ANSI/UL711, ULC – Southwest Research Institute (San Antonio, TX) Defense Logistics Agency (DLA) US Gov. NSN Approval #s’

EN3-7; EN3-81 – MPA, Dresden (Germany) CE2 – DNV

Firefighting Foam Concentrates:

EN1568 – MPA Dresden ICAO – CNPP (France)

IMO – MPA Dresden, Lloyds Registry, DNV, MED CE

Environmental Testing:

NAMSA, USA

Associated Laboratories, CA USA Environmental Medicine, Inc., USA OPUS, Ltd., UK

1 This Standard refers to hardware durability, reliability and efficacy

2 This Mark assures manufacturing quality through yearly inspections

Executive Summary

Since Hydraulic Fracturing operations can virtually take place globally, until now, the support industry for these operations could not offer an economic solution, both in time, effort, and cost, to deliver total safety.

With the introduction of the FireStopper® FFC (Fire Fighting Catalyst) Technology and its branch technology EnviroSafe®, Fracking can now implement a full safety program that not only undertakes complete fire protection, explosion detection and amelioration in addition to the most complete environmental hazard protection while operating its intended product extraction.

FireStopper® provides full design, engineering, and installation of portable and fixed systems, that provide the quickest extinguishment of fire, detect and deploy anti-explosive FireStopper® product thereby vastly reducing the effects of both fire and explosion destruction.

The FireStopper® detection systems for explosion suppression detect in less than 5-microseconds and deploy in less than 50-msec to reduce the explosive event to its minimal progression. In the case of fire, our detectors will detect and deliver in less than 100-msec to eliminate the fire while reducing the temperature to ambient within the extinguishing and deployment time. No other available products can approach the reliability FireStopper® brings with its total products.

In the present economic environment where the cost of industry outpaces profit margins, no operation can afford to loose its infrastructure to a fire or explosion event. FireStopper® is the only company that offers its wares exclusively in stainless steel for long-term reliable usability and durability (most products carry a 20-year Limited Warranty) over all other manufactures.

PRODUCTS AND APPLICATION

FIRE EXTINGUISHING LIQUID PRODUCTS

  • All fire class effective ABCDK
  • Non-Toxic, Non-Hazardous, Eco-Safe according to HOCNF (Harmonized Offshore Chemical Notification Format and FHSA regulations, 16 CFR 1500 and California Proposition 65) will meet and exceed all environmental requirements for fire safety products

FireStopper® XL “PLUS” FFC (1%, 3%, 6% usable concentrate):

Advantages:

  • This product is the highest rated product for fire efficacy in the world as determined by the international certification under EN1568, IMO, and ICAO by MPA Dresden and CNPP, France (for more information please see product sheet).
    • Meet or exceed UL162
    • Storage temperature resistance: -34.5℃
    • This product is ideal for fixed and portable system, e.g.: deluge system, proportioned systems, hand-line systems, compressed air systems, and multiple product system (although multiple products are not necessary).
  • When independently tested head to head against Tyco Chemguard foam, in a simulated Fracking Pump truck environment, FireStopper® XL FFC, the midrange product in the concentrate line, delivered 10-times faster extinguishment with no possible re-ignition in contrast with the easily re-ignitable Chemguard exemplar.

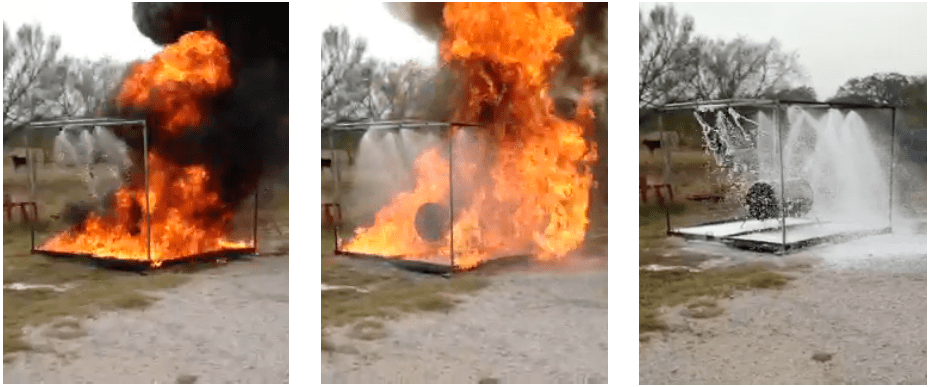

Fig. 1                             PRODUCT EFFICACY COMPARISON

FireStopper® XL FFC vs. Tyco Chemguard

Fracking Pump Vehicle Protection Flammable Area Simulation (Commissioned by Lewis Energy Group)

Simulated Fire Area and Fuel:

  • 8’X8’X8’
  • 8-nozzles
  • Diesel and gasoline

Additional Information:

  • An attempt to reignite the extinguished fuel on both exercises (not shown)

Conclusion:

FireStopper® XL FFC @ 3% extinguished the fire in approx. 2.6-sec

  • Total spray time: <5-sec

Chemguard @ 3% extinguished the fire in approx. 13-sec

  • Total spray time: approx. 19-sec

Post Fire Result:

FireStopper®:

No re-ignition possible

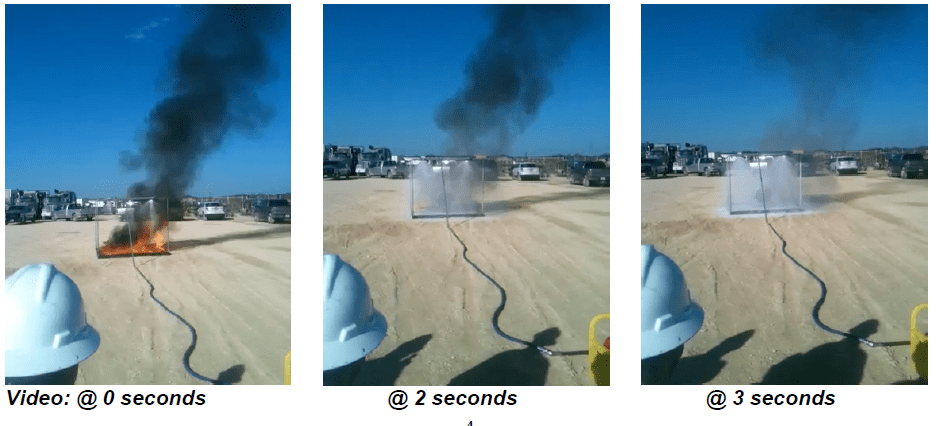

Fig. 2

FireStopper® XL FFC vs. TYCO CHEMGUARD AFFF

(Head To Head On Camera Video Comparison Demo @ Lewis Energy)

TYCO/CHEMGUARD

Video: @ 0 seconds                                  @ 4 seconds                                   @ 17 seconds

Full Video Comparison Available Upon Request:

  • FireStopper® PFE-FR FFC (a premix exclusively available with for use in conjunction with FireStopper® trademarked systems)

ADDITIONAL PRODUCTS

Advantages:

  • This product is designed for use exclusively with FireStopper® trademarked systems and delivers:
    • Full efficacy on all fire class and subclasses
    • -100ºF freeze resistance while in use without harmful antifreeze additives
    • Viscosity: water-thin
    • Anti-explosive properties
    • Highest ratings in the world both: EN3-7 & UL7-11
    • Highest Eco-Safety testing results under HOCNF, and meet or exceed FHSA regulations, 16 CFR 1500 and California Proposition 65
    • Ideal for use where extreme cold temperatures may be a factor
    • The ideal product for use in concert with FireStopper® CAC (Compressed Air Catalyst) units; please see CAC Catalog
  • FireStopper® EXP FFC (a premix exclusively available with for use in conjunction with FireStopper® trademarked systems)

Advantages:

  • The only proven product effective on Hydrogen/Methane explosions (at Gexcon, Norway)Non-toxic, non hazardous and non-corrosive
  • Biodegradable/Environmentally SafeSuper anti-explosive propertiesNo unpleasant odorGreat temperature reduction i.e. (>1500°F in < 40 sec.)Freeze Resistant: -100°F (-73.33°C)

Applications through FireStopper® Systems

  • Petrochemical Industry
  • Tires & Rubber
  • Vehicles: Interiors And Exteriors
  • Military
  • Transformers
  • Mines
  • Transportation
  • Warehousing
  • Marine
  • Structural
  • Aero Space
  • Cargo Holds
  • & More…

This FireStopper® derived ENVIRO-SAFE® Technology is the next generation FireStopper® Technology. EXP (FFC) is designed with exclusive properties that combine multiple fire suppression, endothermic and barrier production environments, to deliver the anti-explosive protection necessary to prevent the expansion of the pressure wave.

In addition, the FFC Products are the only A, B, C/E, D, & K / F fire-fighting products in the market that deliver faster knockdown, no flash back, faster cool down and fully reliable post fire security. EXP (FFC) incorporates said properties to enhance post-explosive security.

  • EnviroSafe® TCC (FFC) (A Concentrate: best usage to be determined by the end user) Advantages:ENVIROSAFE® H2O BASED CHEM (A High Kinetic Active Foamer, An Aqueous Lubricant, & Endothermic Clean Agent)Meet and exceed HOCNF, and all other environmental requirementsUSAGE: AS A DRILLING MUD REPLACEMENT AGENTOTHER USES:Can be used to replace the array of Fracking chemicals employed in the hydrocarbon extraction process

EnviroSafe® EBC (FFC) (Environment Bio-Remedial Catalyst) Agent APPLICATIONS:

ENVIRO-SAFE® EBC OIL DISPERSING AND PENETRATING PROPERTIES CAN BE APPLIED TO ANY OIL SPILL WHETHER ON LAND, GARMENTS, EQUIPMENT, OR ON WATER SURFACES. NO SPECIFIC VOLUMES ARE DETERMINED OR RECOMMENDED BY THE MANUFACTURER. USER SHALL DETERMINE BY PRACTICAL EXPERIENCE SUCH

VOLUMES NECESSARY TO DISPERSE THE REQUIRED TASK. NOTWITHSTANDING, THIS FireStopper® SPECIAL PRODUCT CAN TREAT THE “TRAILING PONDS”, PREVALENT TO FRACKING OPERATIONS, WITH THE ABILITY TO REMEDIATE SAID CONTAMINATION EVENT.

Advantages:

  • EASY TO APPLY THROUGH NORMAL FIRE FIGHTING HOSE AND NOZZLES
  • CONCENTRATE (A High Kinetic Active Foamer)
  • USAGE: 6% or as required
  • NON-FLAMMABLE
  • ECO-SAFE
  • NON-TOXIC
  • NON-FLAMMABLE
  • VAPOR SUPPRESSANT
  • TESTED BY BP TO ELIMINATE TAR BALLS
  • PLEASE SEE ADDITIONAL PRODUCT INFO UPON REQUEST

EnviroSafe® ECC (FFC) APPLICATIONS:

As a Drilling Mud replacement, an aqueous lubricant and environment temperature control liquid compound, pressure suppressant, fire suppressant and anti-explosive agent. Derived from the ENVIRO-SAFE® H2O based chemistry (a highly kinetic, temperature absorbing and diffusing, Non- Toxic, environmentally safe agent)

ECC (FFC) is designed with exclusive properties that combine multiple fire suppression, temperature control properties and barrier production environments, that deliver the necessary environment to prevent uncontrolled expansion of temperature and pressure among other desirable environment stabilization capabilities.

Advantages:

  • Non-toxic, non hazardous and non-corrosive
  • Biodegradable/Environmentally Safe
  • Super anti-explosive properties
  • No unpleasant odor
  • Great temperature reduction i.e. (>1500°F to <120ºF in < 40 sec.)
  • Freeze Resistant: -100°F (-73.33°C)

o SG: 1.2 – 1.3             pH: 7.0 – 7.9

  • Storage Temp: -10˚C to 34.5˚C

(14˚F to 120˚F)

  • Usable Temp: -40˚C to > 65.5˚C

(-40˚F to >150˚F)

EnviroSafe® TCC (FFC) APPLICATIONS:

This EnviroSafe® H2O based chemistry (a high kinetic active foamer and clean agent) is designed for use as a replacement of Fracking chemicals employed in the hydrocarbon extraction process.

A 6% Concentrate (usable at 6 – 100% to be determined by the end user) with exclusive properties that combine multiple fire suppression and barrier production environments, to deliver deep penetration with tremendous endothermic capability, to reduce environment temperature due to friction, and other circumstances and obviate these extremely hazardous and dangerous conditions.

Advantages:

  • Non-toxic, non hazardous and non-corrosive
  • Biodegradable
  • Extremely low surface tension
  • Great temperature reduction e.g. (>1500°F to 130°F in < 40 sec.)
  • Concentrate Freeze Resistant: -2°F (-19°C)
  • Usable Temp: -18˚C(full strength)

-2ºC @ 6%) to > 65.5˚C (-0.4˚/28ºF to >150˚F)

Conclusion

Responsibility to provide safety is owed to the public by both Government and Industry. In current profound social and economic conditions, Government, Industry and the consumer cannot afford the risk of loss both materially and always risk to life. FireStopper® offers the only real security against the always present danger of serious environmental degradation, catastrophic fire and or worst, explosion.

Click For More Info

Underground Mine Fires

This presentation focuses on how FireStopper can easily extinguish underground mine fires no matter how long they have been burning!

INTRODUCTION

FireStopper® International Limited, a transnational Registered Company, is the developer of the world’s most advanced and powerful firefighting and anti-explosion “Proprietary Technology”, within the meaning of the Uniform Trade Secret Act (“UTSA”) Cal. Civ. Code Sec. 3426, Common law, Business and Profession §17200 and all other applicable U.S. and International statues, which also produce environmental remediation and other supporting applications.

FireStopper® initially devoted the first 25-years of its existence to R&D and subsequently is the recipient of the stand-alone testing results in fire ratings, usage and environmental certifications. Said superior performance is evident over all others as granted by the most recognized and respected third-party testing and Listing facilities in the world.

Moreover, this unique Technology has brought forth the only available “all fire class” effective and “anti-explosive” products, which are all Non-Toxic, Non-Irritant, Environmentally Safe and Non-Hazardous. These stand-alone achievements, as granted per the most demanding environmental and life exposure testing and certification, make the FireStopper® “Brand” the undisputed best overall effective products and superior over all other existing and available products in the explosion/fire and safety channel of business.

In addition and in pursuit of stability, FireStopper® has secured supply lines for its raw material needs to meet its current production capacity of 1-Mil gallons per month and 50k units/month in the handheld portables product line. As for delivering its portable systems and fixed systems, FireStopper® International Limited is dedicated to meet or exceed the client expectations at every juncture.

FireStopper® premixed liquids and concentrates are additionally recognized as the only all fire class and subclass effective liquid suppressants, which in addition, provide all environment use and protection.

DISCUSSION:

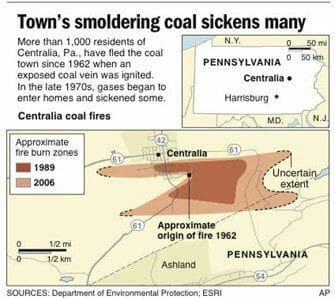

This presentation focuses on spotlighting the procedure to determine the way to implement this novel and effective technology, its appropriate product and methodology for determining the way forward and procedure designed to deliver a quick, safe and economical life and property safety solution to the devastation to date.

It is obvious that the Federal Government, the State of Pennsylvania and the appropriate Municipality have exhausted both available products and methodology in the trek to extinguishment. The devastation left behind, has caused the citizens and adjacent Municipalities great cost and concern by the unstoppable path this devastating event has taken and continues to progress.

Therefore we propose the following:

The ideal and recommended product in the FireStopper® arsenal is AB 40002 FFC. When recently demonstrated in an emergent coal fire in Portugal, this FireStopper® product extinguished a substantial coal fire load with a 9-liter extinguisher charged at the certified 6% usage.

We recommend a similar demonstration to be performed highlighting the undefeatable performance of this product.

Should the responsible personnel for decision making thereof decide to proceed with the program to extinguish this devastating event once and for all we respectfully propose the following:

THE DEMONSTRATION & NOVEL SOLUTION:

To demonstrate efficacy, we propose that FireStopper® demonstrate the efficacy of its appropriate product in extinguishing the native coal material in a similar condition as it exist underground; taking a controlled quantity and temperature level depicting close as possible said conditions, e.g.:

First Step

  • A moderate quantity of the coal material (50-lbs to 500-lbs) ignited to the highest potential temperature
  • Depending on the actual size of the demo fire, FireStopper® shall demonstrate the most economical extinguishment in time, product and effort

Second Step

In order to determine the way forward, we recommend the following second approach:

  • A sector of active underground fire should be chosen
  • Thermal mapping must be taken to determine the temperature, depth and course of said sector fire
  • Once analyzed, a starting point shall be chosen and product quantity and equipment shall be determined
  • The recommended equipment
  • Fracking Pump Trucks & personnel (numbers shall be determined by the initial area to be extinguished)Ground drilling equipment & PersonnelProduct transmission hoses and nozzles as neededFire fighting personnelWater supplyOther necessary diagnostic equipment (TBD)

This second step is necessary to determine adequate levels of FireStopper® AB 40002 FFC to maintain and manufacture for said massive project. Also, this step will help to calculate a general budget to terminus.

Conclusion

In the interest and service of the public, the Municipal Fire Services must engage in providing the best and most effective fire and fire related protection possible. Within the scope of said mandate, fire services should also provide for the safety of its personnel in the act of the intended task and within this pursuit. It is incumbent upon said service to investigate and identify the most reliable new technologies and products that will enable them to deliver the best and most reliable results available.

In the current profound social and economic conditions, Government, Industry and the Consumer cannot afford the risk of loss both materially and the ever present risk to life. FireStopper® offers the only real security against the ever present danger of catastrophic fire and or worst, the possibility of an added explosion event.
